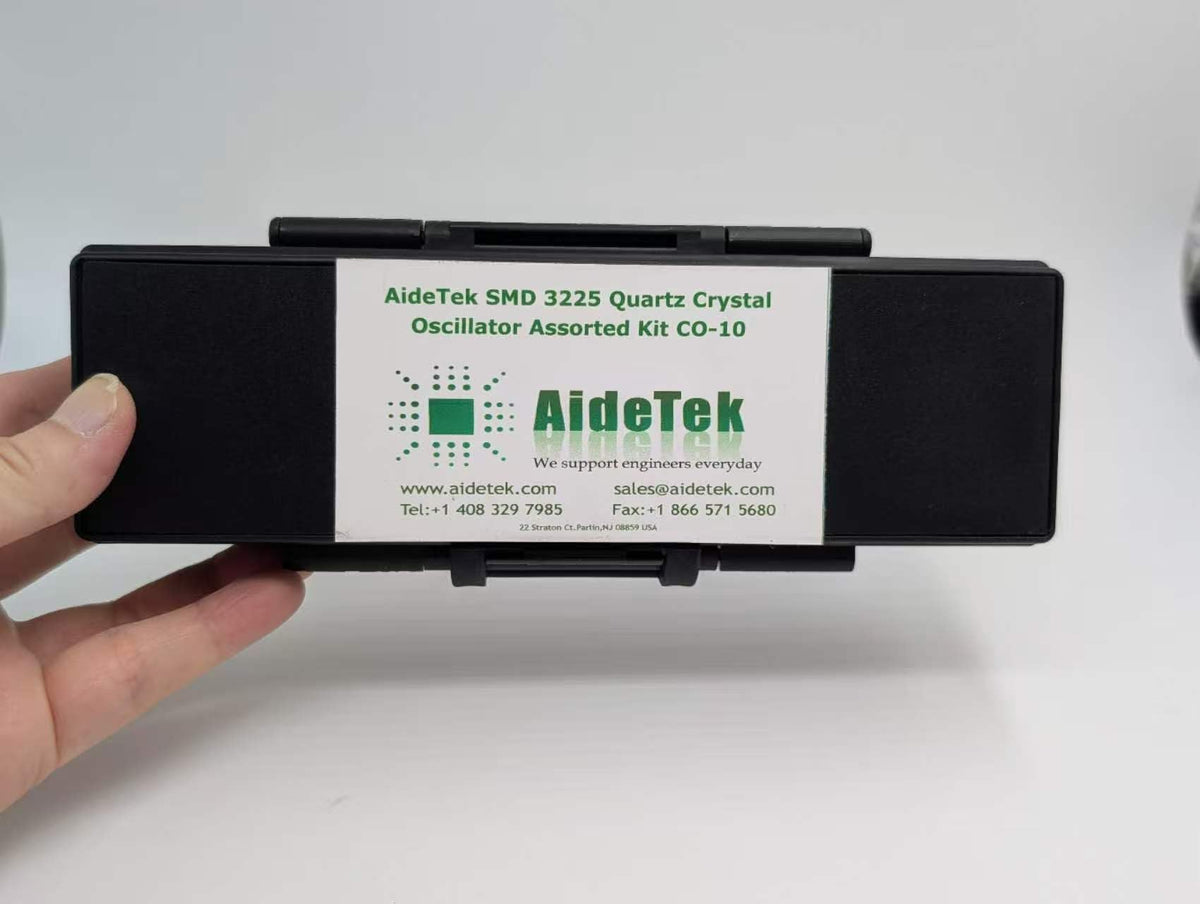

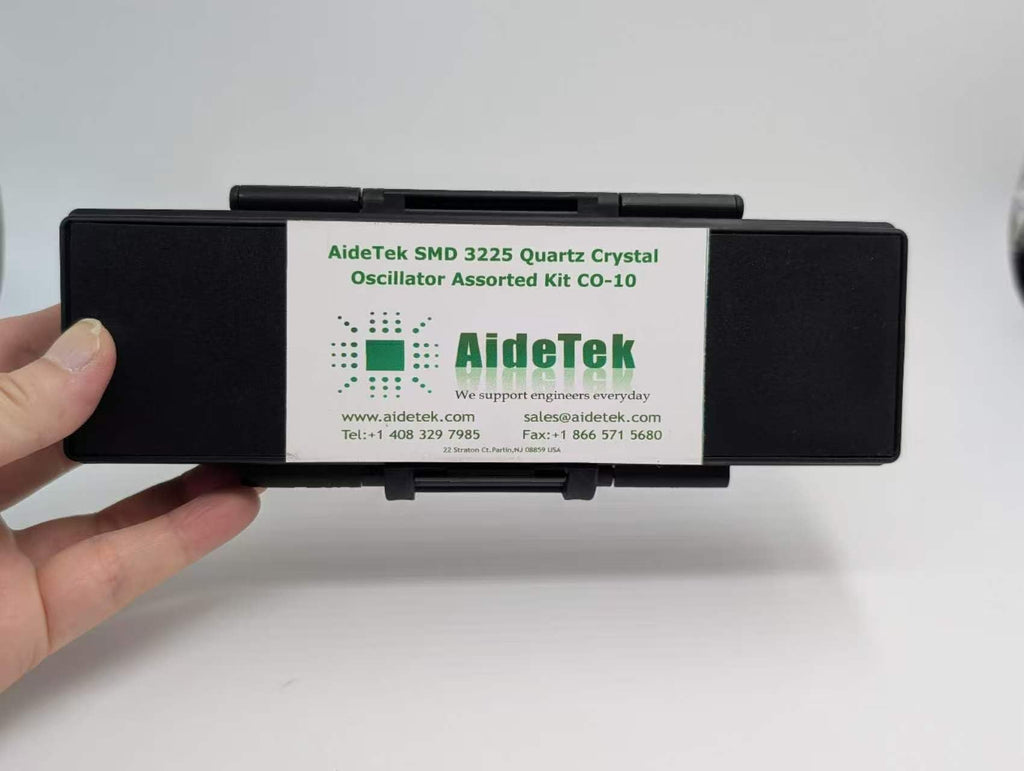

AideTek SMD 3225 quartz Crystal Oscillator Assorted Kit CO-10 8Mhz to 48Mhz 27.12MHz 12pf
$43.99
Skip to product information
AideTek SMD 3225 quartz Crystal Oscillator Assorted Kit CO-10 8Mhz to 48Mhz 27.12MHz 12pf
PRODUCT OVERVIEW

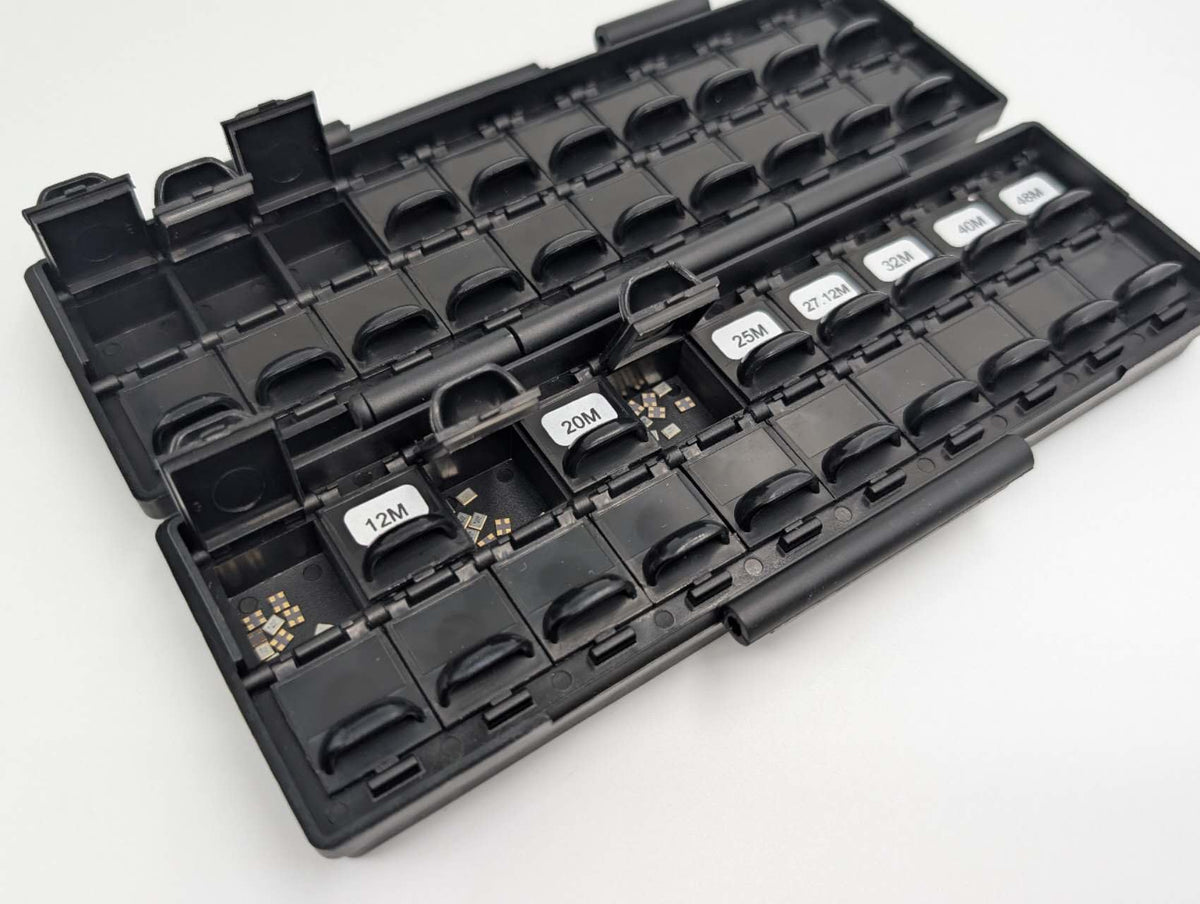

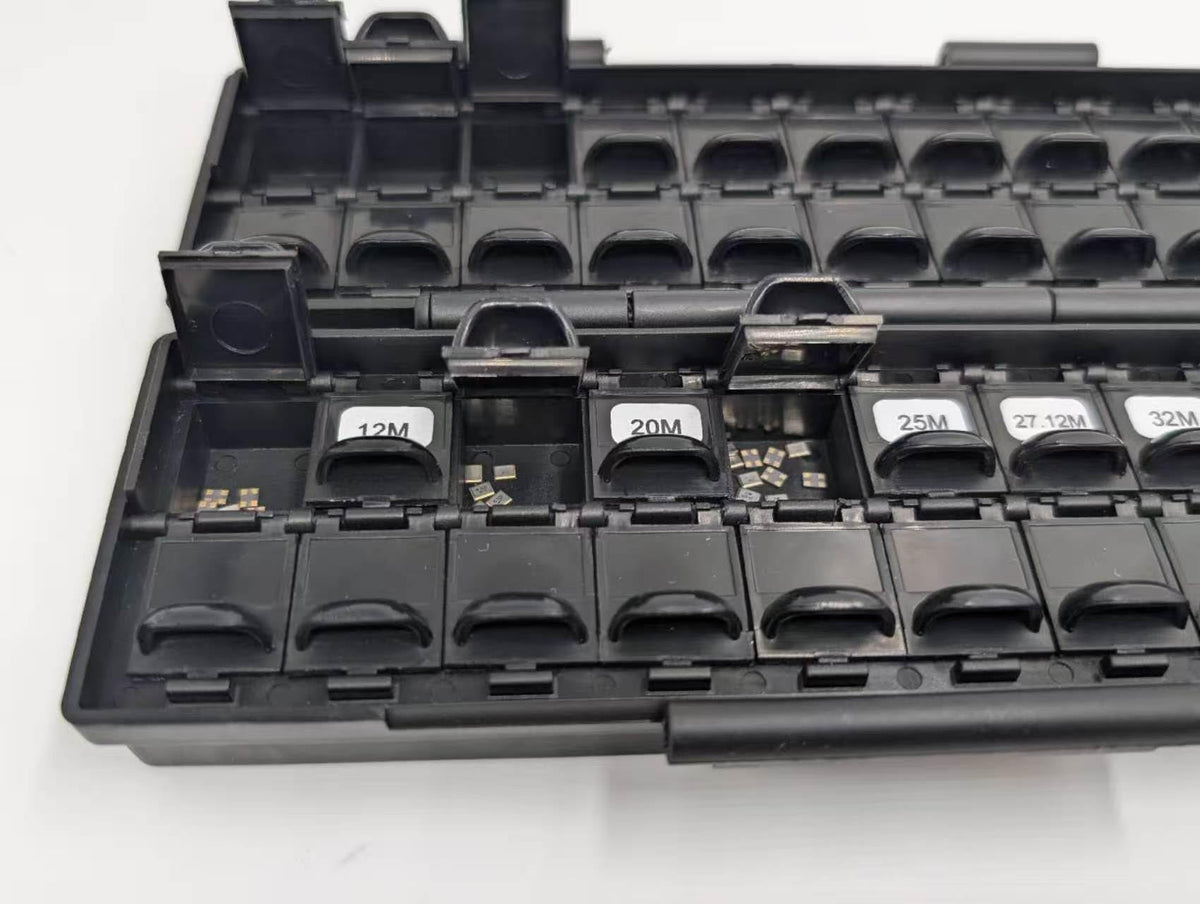

The CO-10 kit is high-performance SMD 3225 (3.2 × 2.5 mm) quartz crystal resonators. This kit is specifically curated for rapid prototyping, laboratory testing, and circuit debugging. Each component is selected to provide standard stability and reliability for embedded development.
Kit Specifications
·Total Quantity: 100 pieces

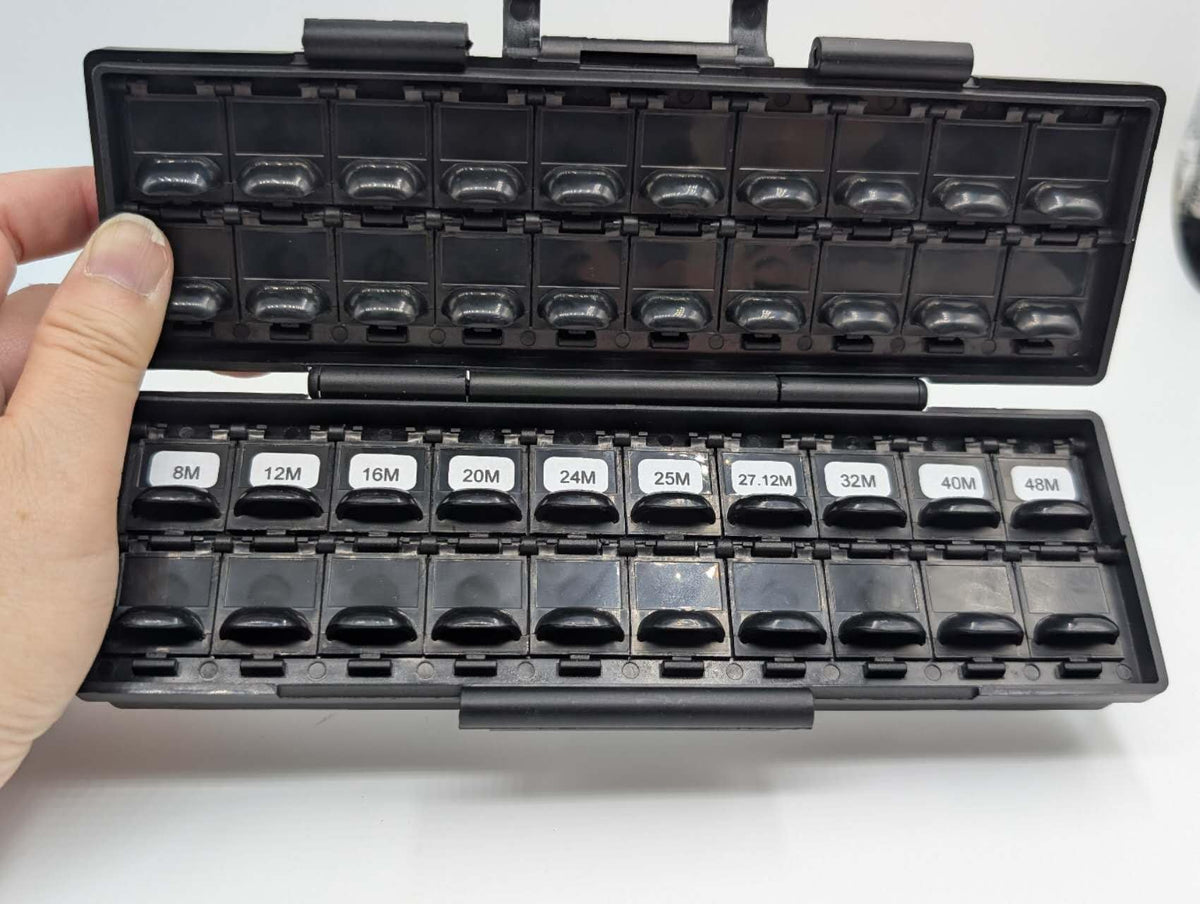

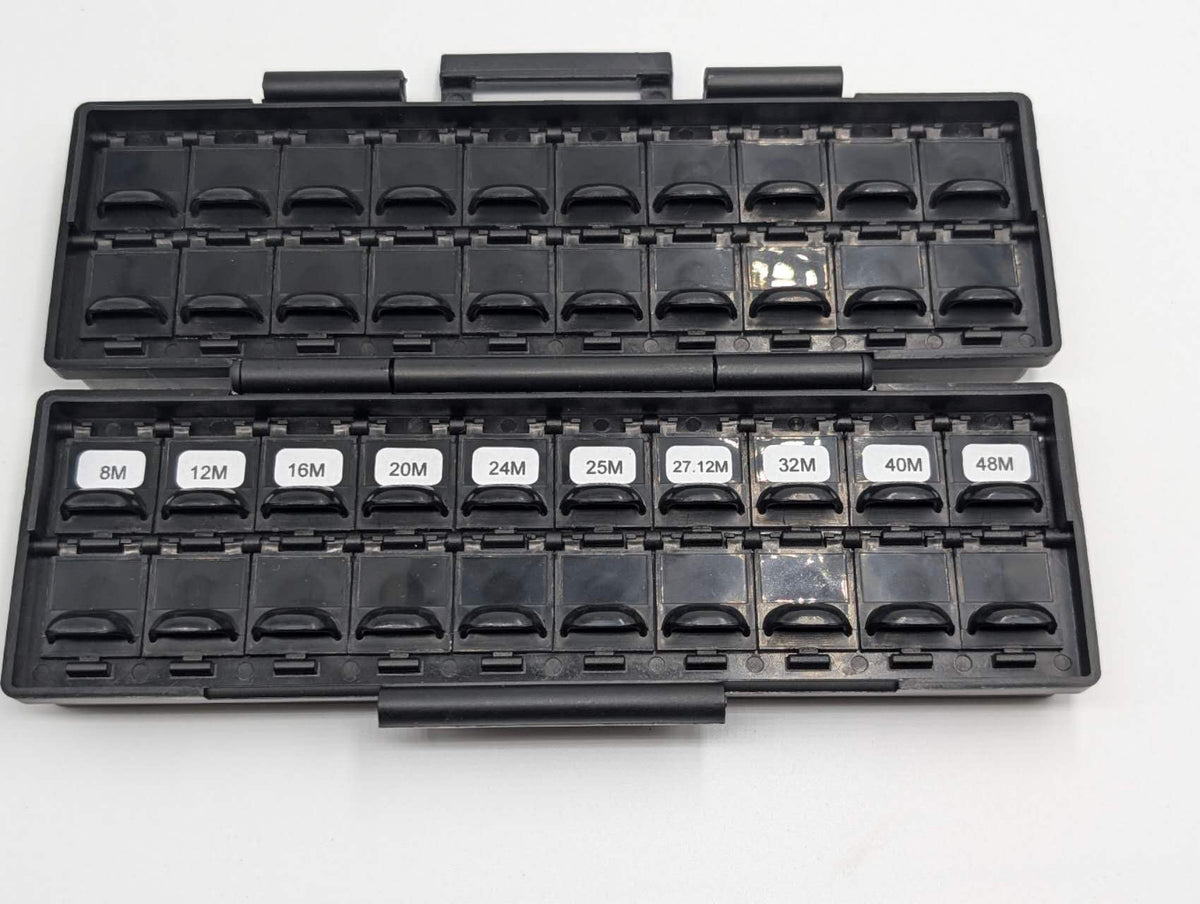

·Configuration: 10 values, 10 pieces per value
·Package Type: SMD 3225 (3.2 × 2.5 mm)
·Frequency Tolerance: ±10 ppm (@ 25°C)
·Equivalent Series Resistance (ESR): ≤ 40 Ω
RELIABILITY & ENVIRONMENTAL TESTS
·High Temp./Humidity Storage: 85°C, 85% RH for 96 hours.
·Thermal Shock: -55°C to +85°C, 10 cycles, 30 min each.
·Mechanical Shock: Half sine wave, 1000G, 3 times per axis.
·Vibration: 10Hz to 55Hz, 0.75mm amplitude, 2 hours per axis.
·Solderability: 245°C ± 5°C, 5 ± 0.5 sec immersion.
REFLOW SOLDERING PROFILE
·Peak Temperature: 260°C (Max 10 sec).
·Solder Melting Point: 220°C.
·Reflow Cycles: Max 3 times.
·Note: Ensure proper reflow ramp-up/down rates (max 3°C/sec) for optimal integrity.
MECHANICAL DIMENSIONS (SMD 3225)
·Dimensions: 3.20 ± 0.1mm (L) x 2.50 ± 0.1mm (W) x 0.70 ± 0.1mm (H).
·Recommended Layout: 1.4mm (L) x 0.8mm (W) soldering pads.
·Packing: Standard tape and reel (PS material) for automated assembly.
