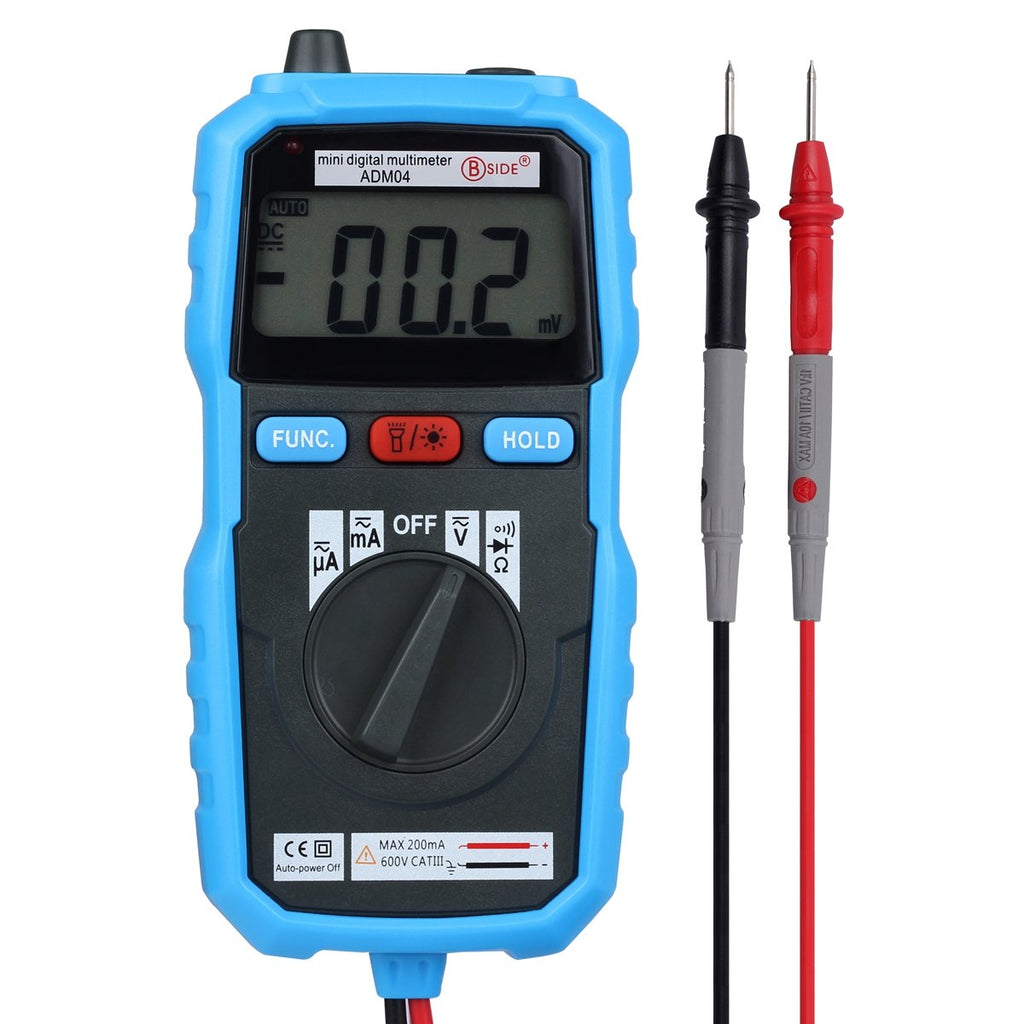

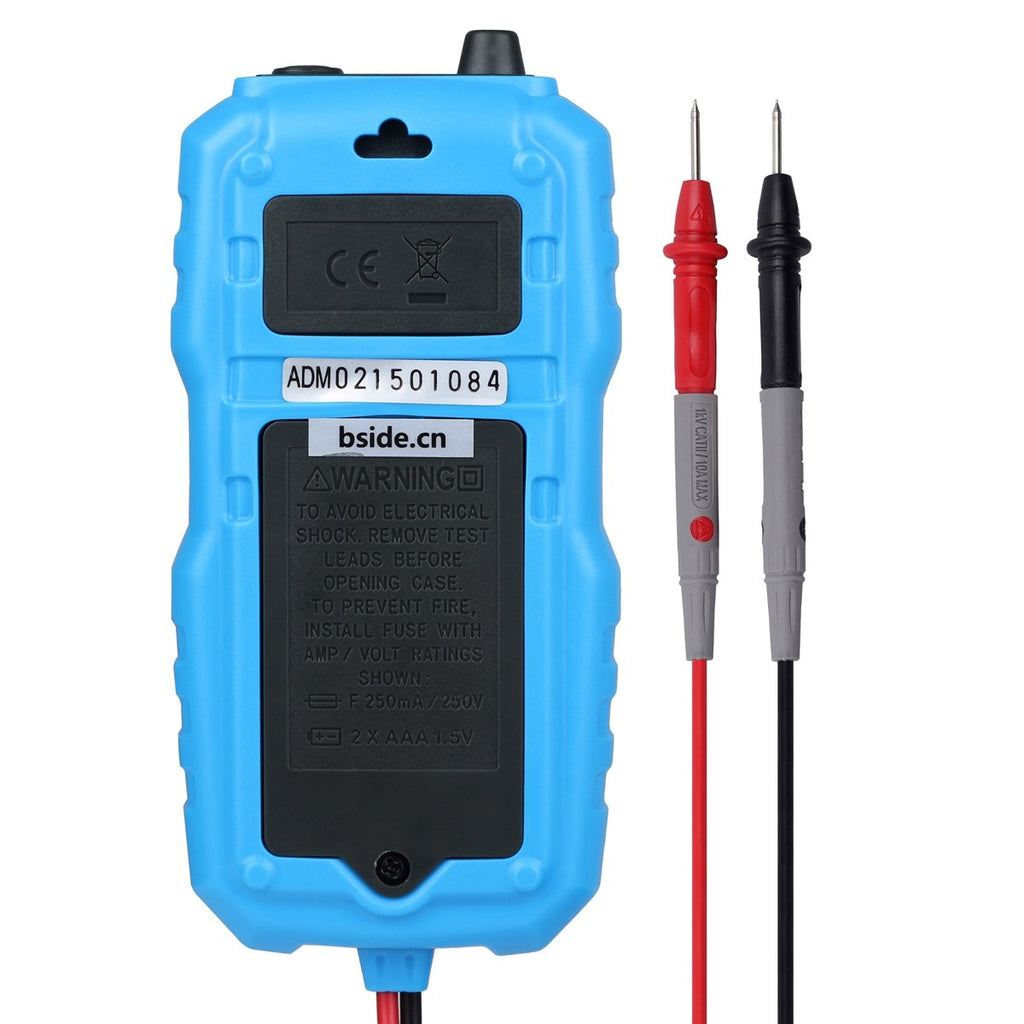

Bside Auto Range Digital Multimeter with Backlight Display and HZ Measurement
$12.99
Skip to product information
Features:
Safety rating:CE CATIII 600V

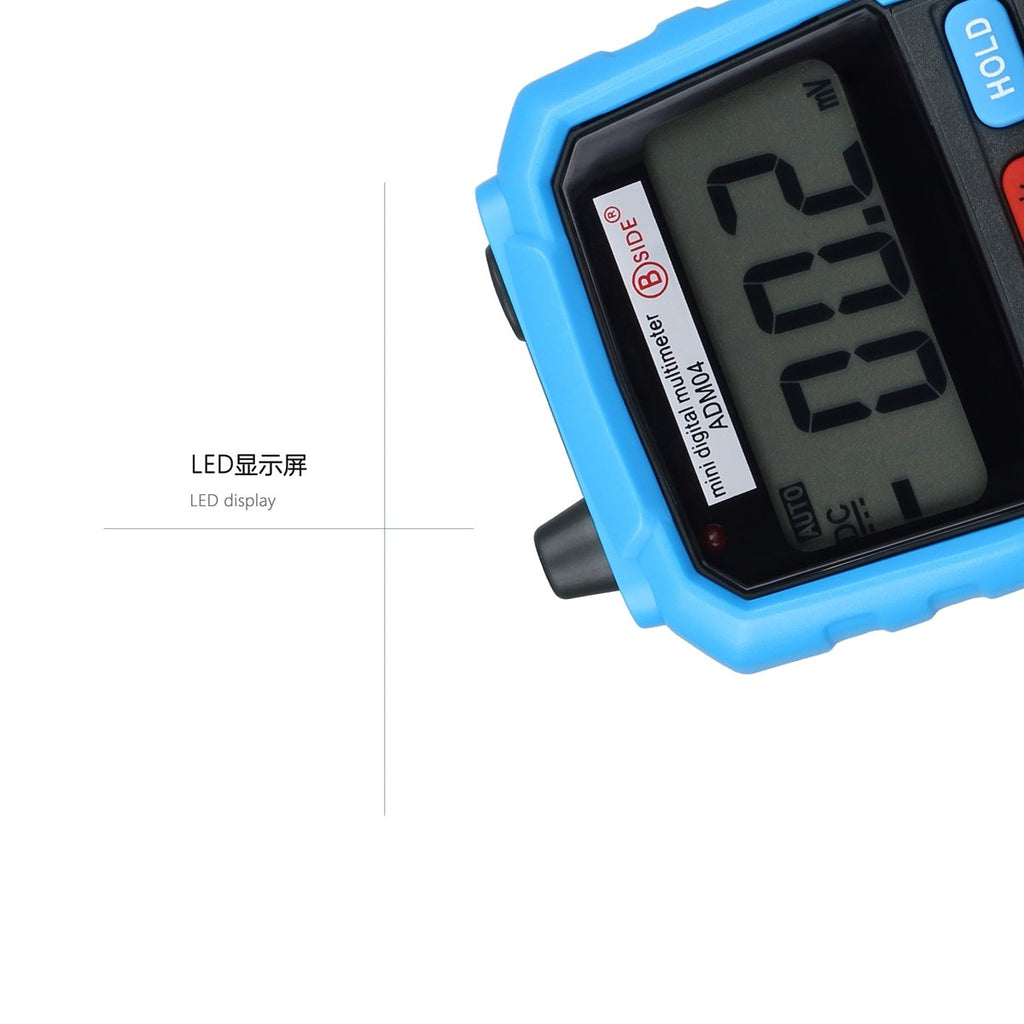

3 1/2 digital LCD display

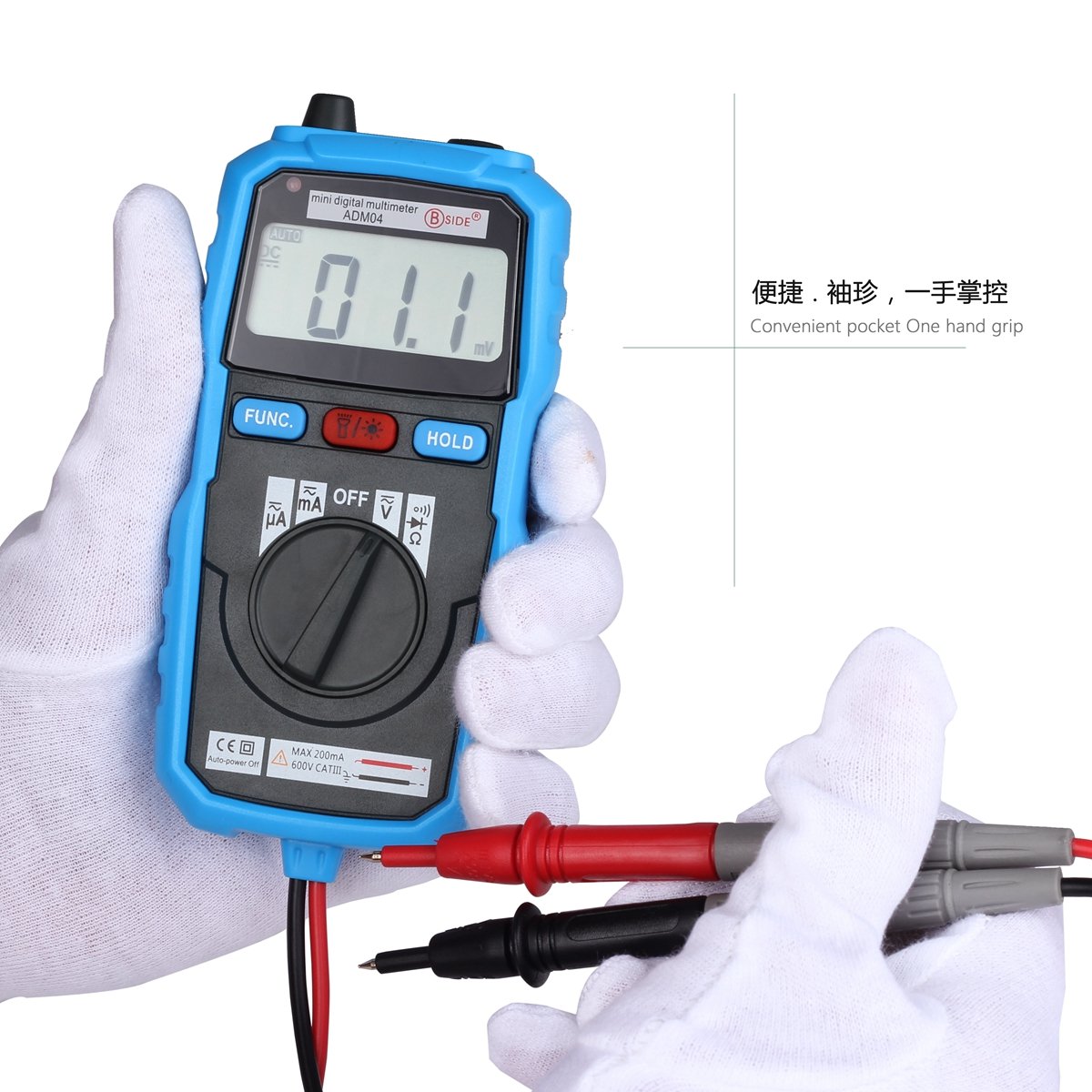

Mini pocket Auto range digital multimeter, easily to use
Measure DC/AC voltage, DC/AC current, resistance, and diode & continuity check
Data Hold function

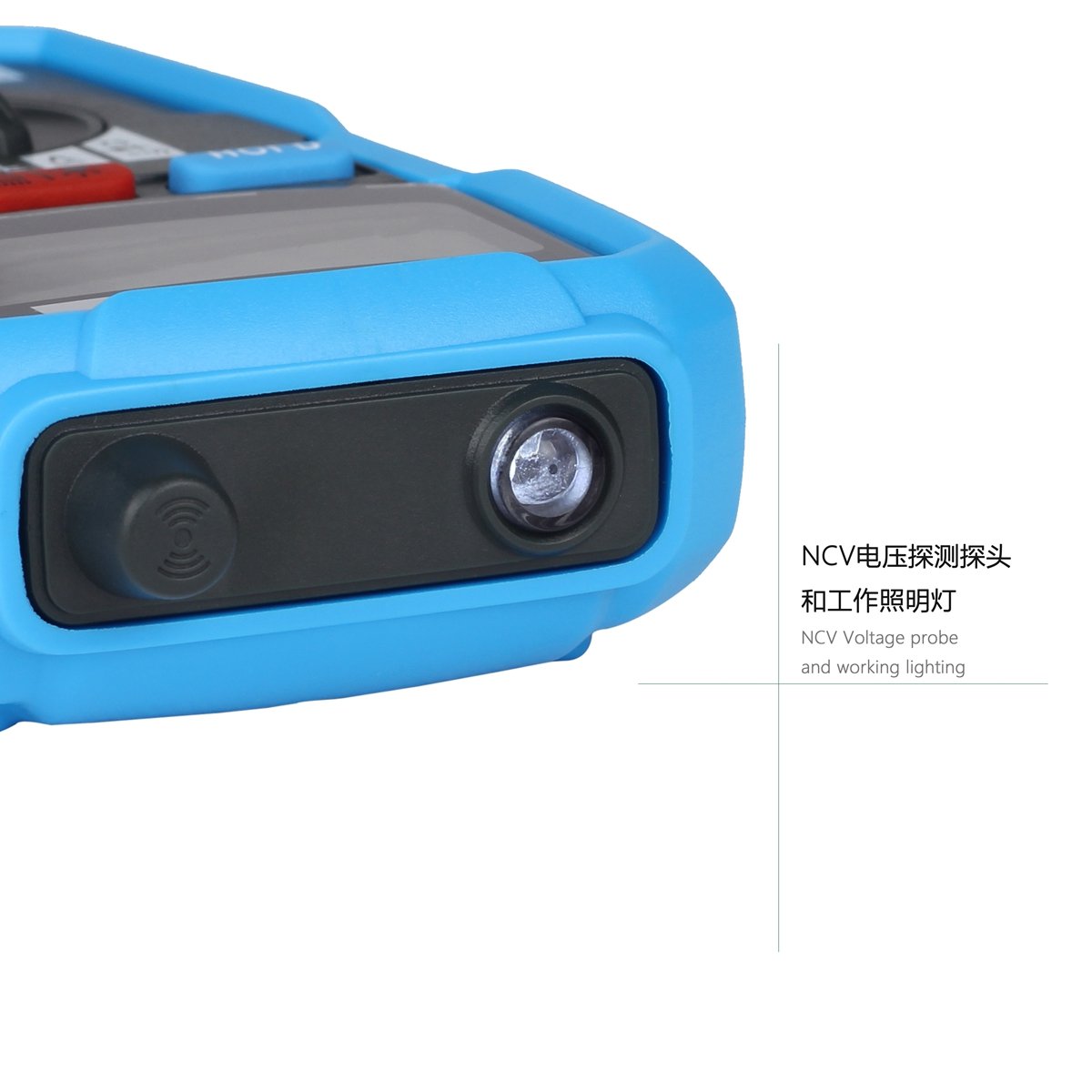

With NCV(Non-contact AC voltage detector)function, more safe to use
With backlight and work light
With case for protection
Low battery indication
Auto power off
Specifications:
DCV: 200mV/2V/20V/200V+-(0.5%+3), 600V+-(0.8%+5)
ACV: 2V/20V/200V+-(0.8%+3), 600V+-(1.0%+5)
DCA: 200?A/2000?A/20mA/200mA+-(1.8%+5)
ACA: 200?A/2000?A/20mA/200mA+-(2.0%+5)
Resistance: 200?/2k?/20k?/200k?/2M?+-(1%+3), 20M?+-(1.2%+15)
Diode Test range 1V, Resolution 0.001V, Test Current: about 1mA, open circuit voltage: about 2.8V. The display shows the approximate value of diode forward voltage drop.
Continuity Check, When the built-in buzzer sounds, the measured resistance less than 50?.
Operating Temperature & Humidity: 0~40°C(32~104 °F), <80% RH
Storage Temperature & Humidity: -10~60°C(14~140 °F), <70% RH
Color: Black + Blue

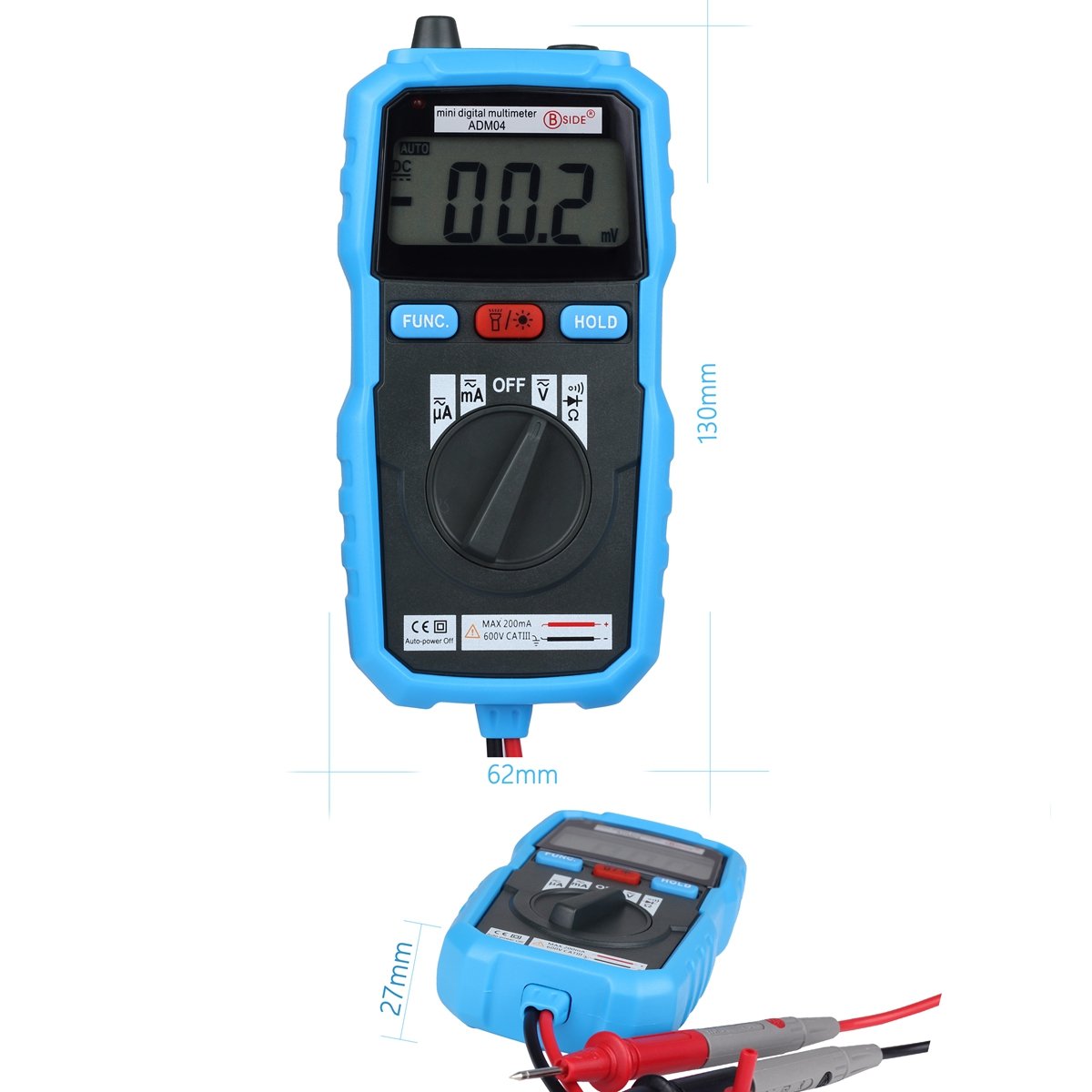

Product Size: 130x62x27mm(5.4"x2.5"x1.10")
Product net weight: 150g/0.34lb
Power Supply: 2 * 1.5V AAA Batteries (NOT included)
Package List:

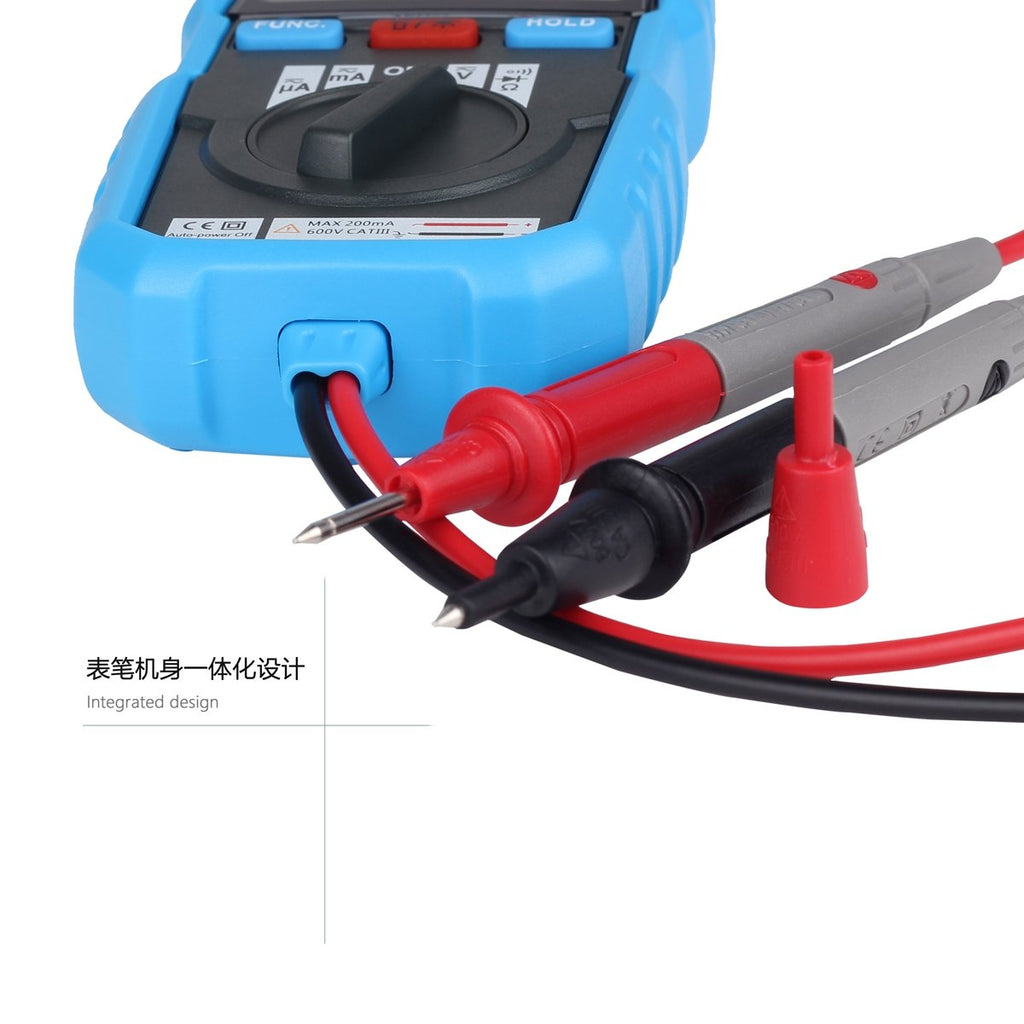

1 * Digital Multimeter with Test Lead
1 * User Manual (English)
